anjal@johnsoncables.com - GST NO. : 24AAFCJ0124N1ZQ
- Send Email
5000 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Click to view more | |
Product Details
Test Voltage
2500 V
Short Circuit Temperature
200°C
Flame Propagation
Flame Reatardant test as per IEC 60332-1-2
Operating Temperature Range
-15°C to +70°C
Volume Resistivity at 20°C Min.
x 10 Ω-cm
Tensile Strength Min. (N/mm²)
7.50 N/mm²
Elongation at Break Min. (%)
120
Minimum Bending Radius
≥6 X Cable Dia
NON CORROSIVE NON TOXIC THERMOPLASTIC LSZH HEAT RESISTANT INSULATED NON SHEATHED
Applications :
- LSZH Wiring For Appliances with maximum operating temperature of 70°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement
Cable Construction :
- Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
- Insulation : Thermoplastic LSZH type TI 7 to EN 50363-7
Features :
- Design for Harmonized Acc. to European Standards
- Thermoplastic LSZH type TI 7 to EN 50363-7
- Special LSZH Heat Resistance Thermoplastic Insulation
- Very good Insulation Resistance property
- High current carrying capacity
- LSZH and ozone Resistance Insulation Material
- Very good fire retardant property
- Non Corrosive Non Toxic LSZH Heat Resistant Insulation
- Long Flex Life
- Excellent Mechanical & Electrical Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen

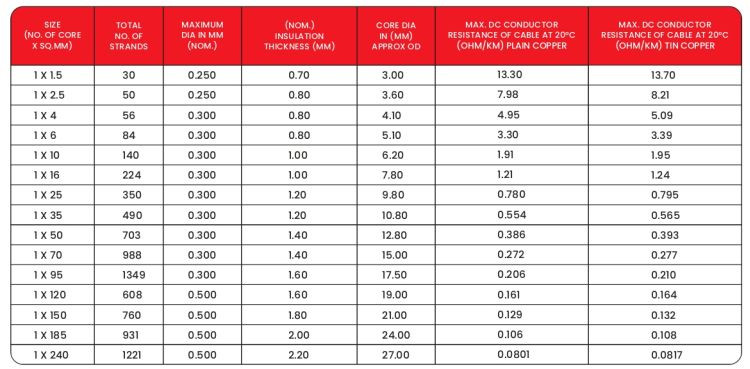

Specifications
Looking for "H07Z1 K Type Cable" ?
Meter
