5000 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500 V |
| Click to view more | |
Product Details
Test Voltage
2000 V
Short Circuit Temperature
160°C
Flame Propagation
Flame Reatardant test as per IEC 60332-1
Operating Temperature
-20°C to +90°C
Volume Resistivity
27° C Min. : 1 x 10 Ω-cm
Tensile Strangth Min. (N/mm²)
12.50 N/mm2
Elangation at Break Min. (%)
150
Minimum Bending Radius
≥6 X Cable Dia
SINGLE CORE HEAT RESISTANCE HR PVC TI 3 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
H05V2-K & H07V2-K Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : Heat Resistance PVC type TI 3 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 3 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulatio
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement

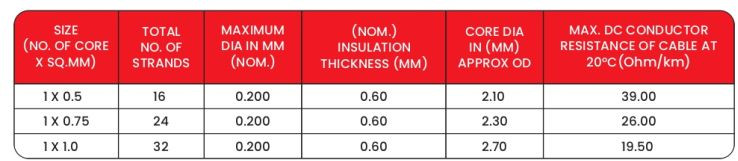

Specifications
