Single Core H07RN- F Type Cable

Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.

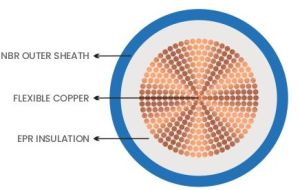

Cable Construction

• Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
• Insulation EPR (Ethylene Propylene Rubber) EI4
• Outer Sheath EM2 Type NBR Rubber

Insulation Color Code

• 1 core : Black or other Colour
• 2 core : Blue, Brown
• 3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
• 4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
• 5 core : Green/Yellow, Blue, Brown, Black, Gray
• 6 core & above : Green/Yellow, Black

Outer Sheath

• Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)

Note :

• There is the option for core colour & sheath colour as per customer requirement

Featues :

• Design For Heavy Duty Use
• Very Good Long Term Performance
• Excellent Resistance To Oil,chemical & Solvent
• Excellent Weather Resistance
• Excellent Mechanical & Electricals Property
• Very Good Current Carring Capacity
• Very Good Tharmal Property

Packing Details

• 100 Meter
• 200 Meter
• 500 Meter
• 1000 Meter
• 2000 Meter
• or As per Customer Requiremen
