5000 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Click to view more | |
Product Details
Test Voltage
2000 V
Flame Propagation: Flame Retardant Test
As per IEC 60332-1
Operating Temperature Range
-15°C to +90°C
Volume Resistivity at 27°C Min.
x 10 Ω-cm
Tensile Strength Min. (N/mm²)
12.50 N/mm2
Elongation at Break Min. (%) :
150
Minimum Bending Radius
≥8 X Cable Dia
MULTI CORE HEAT RESISTANCE PVC INSULATED & PVC SHEATHED FLEXIBLE CORDS
Applications
- PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances, such as office equipment. applications.
Insulation Color Code :
2 Core : Blue Brown
3 Core : Yellow/Green Strip Blue Brown
4 Core : Yellow/Green Strip Brown Black Gray
5 Core : Yellow/Green Strip Blue Brown Black Gray Or as per customer requirement.
Sheath Color Code :
- 2 Core : White / Blue / Gray
- 3 Core : White / Blue / Gray
- 4 Core : White / Blue / Gray
- 5 Core : White / Blue / Gray
- Or as per customer requirement.

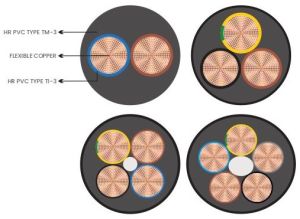

Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 6022
- Insulation : HR PVC type TI 3 to EN 50363-3 (H05V2V2-F)
- Sheath : HR PVC type TM 3 to EN 50363-4-1 (H05V2V2-F)
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation HR PVC type TI 3 to EN 50363-3
- Special Grade Sheath HR PVC type TM 3 to EN 50363-4-1
- Very good Insulation Resistance Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement.

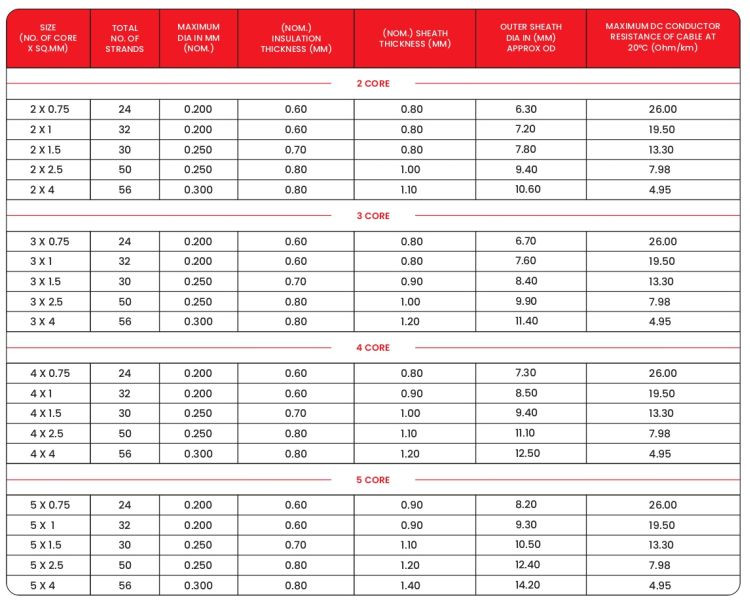

Specifications
