Harmonized Cables

Business Type	Manufacturer, Exporter, Supplier, Importer
Brand Name	Johnsoncab
Voltage	450/750V
Country of Origin	India
Test Voltage	2500 V
Flame Propagation	Flame Reatardant test as per IEC 60332-1
Operating Temperature Range	-25°C to +90°C
Volume Resistivity at 90°C (Ohm-cm) Min.	1 X 10 12

Tensile Strangth Min. (N/mm2)	5.00
Elangation at Break Min. (%)	200
Minimum Bending Radius	8 X Cable Dia

Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.

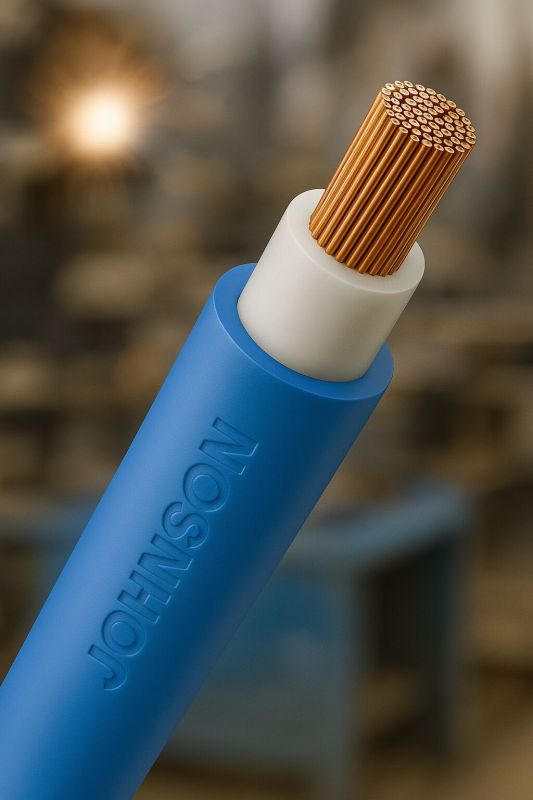

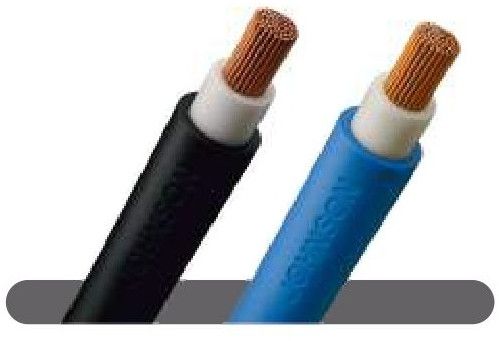

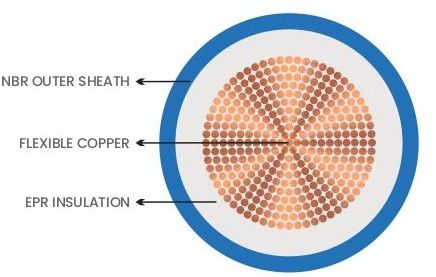

Cable Construction

Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
Insulation EPR (Ethylene Propylene Rubber) EI4
Outer Sheath EM2 Type NBR Rubber

Insulation Color Code

1 core : Black or other Colour
2 core : Blue, Brown
3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
5 core : Green/Yellow, Blue, Brown, Black, Gray
6 core & above : Green/Yellow, Black

Outer Sheath

Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)

Note :

There is the option for core colour & sheath colour as per customer requirement

Featues :

Design For Heavy Duty Use
Very Good Long Term Performance
Excellent Resistance To Oil,chemical & Solvent
Excellent Weather Resistance
Excellent Mechanical & Electricals Property
Very Good Current Carring Capacity
Very Good Tharmal Property

Packing Details

100 Meter
200 Meter
500 Meter
1000 Meter
2000 Meter
or As per Customer Requiremen

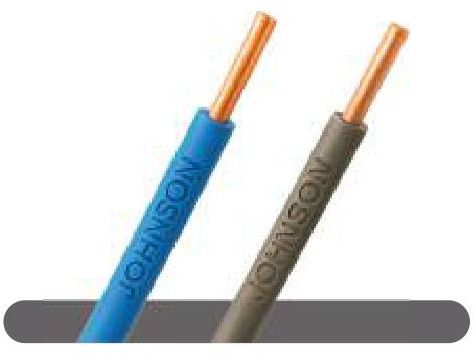

H05V2-U Type Cables

5000 Meter (MOQ)

Business Type	Manufacturer, Exporter, Supplier, Importer
Brand Name	Johnson
Country of Origin	India
Voltage	300/500V
Test Voltage	2000 V
Short Circuit Temperature	160°C
Flame Propagation	Flame Reatardant test as per IEC 60332-1
Operating Temperature Range	15°C to +70°C

Volume Resistivity at 27°C Min.	1 x 10 Ω-cm
Tensile Strangth Min. (N/mm²)	12.50 N/mm2
Elangation at Break Min. (%)	150
Minimum Bending Radius	≥8 X Cable Dia

SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING

Applications :

H05V-U U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.

Insulation Color Code :

Black
Blue
Brown
Gray
Orange
Pink
Red
Violet
White
Green
Green/Yellow
Or as per customer requirement.

Cable Construction :

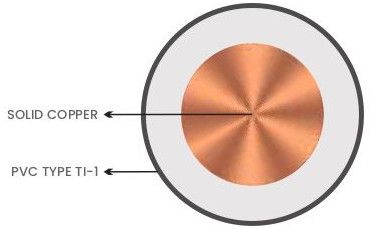

Conductor : Class 1 Solid bare Copper IEC 60228
Insulation : PVC type TI 1 to EN 50363-3

Features :

Design for Harmonized Acc. to European Standards
Very good Insulation Resistance Property
Special Grade Insulation PVC type TI 1 to EN 50363-3
Excellent Mechanical & Electricals property
Very good Current carring capacity
Very good Tharmal property for Insulation
Flame Retardant

Packing Details

100 Meter
200 Meter
500 Meter
1000 Meter
2000 Meter
or As per Customer Requirement

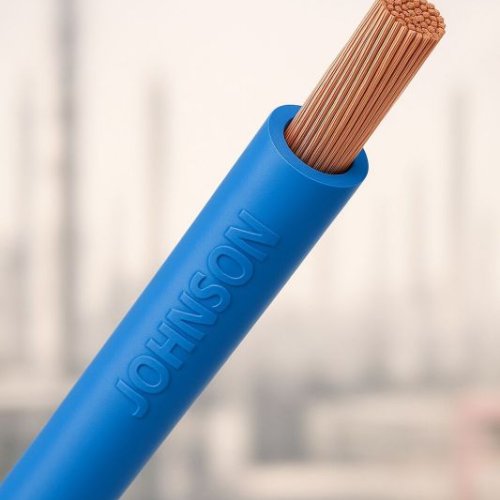

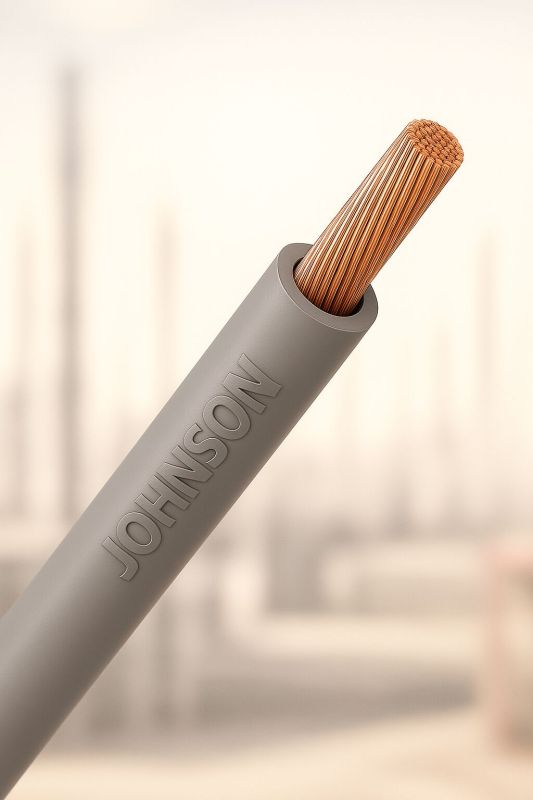

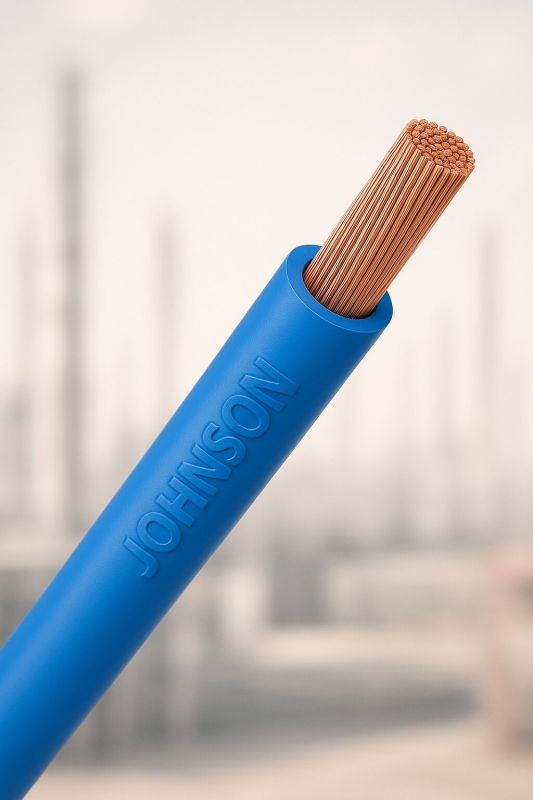

K Type Cables

5000 Meter (MOQ)

Business Type	Manufacturer, Exporter, Supplier, Importer
Brand Name	Johnson
Country of Origin	India
Voltage	300/500 V
Test Voltage	2000 V
Short Circuit Temperature	160°C
Flame Propagation	Flame Reatardant test as per IEC 60332-1
Operating Temperature Range	15°C to +70°C

Volume Resistivity at 27° C Min.	x 10 Ω-cm
Tensile Strangth Min. (N/mm²)	12.50 N/mm²
Elangation at Break Min. (%)	150
Minimum Bending Radius	≥6 X Cable Dia

SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING

Applications :

H05V-K Cable is used for the internal wiring in lighting can also be used in electronoc appliances for measuring, regulating and controlling.

Insulation Color Code :

Black
Blue
Brown
Gray
Orange
Pink
Red
Violet
White
Green
Green/Yellow

Cable Construction :

Conductor : Class 5 Flexible bare Copper IEC 60228
Insulation : Special PVC type TI 1 to EN 50363-3

Features :

Design for Harmonized Acc. to European Standards
Very good Heat Resistance Property for Insulation
Special Grade Insulation PVC type TI 1 to EN 50363-3
Very good Insulation Resistance Property
Excellent Mechanical & Electricals property
Very good Current carring capacity
Very good Tharmal property for Insulation

Packing Details :

100 Meter
200 Meter
500 Meter
1000 Meter
2000 Meter
or As per Customer Requirement

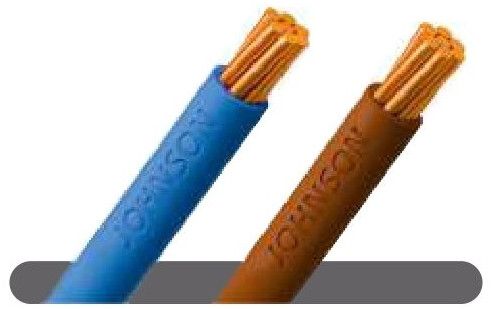

R- H07V2 Type Cables

5000 Meter (MOQ)

Business Type	Manufacturer, Exporter, Supplier, Importer
Brand Name	Johnson
Country of Origin	India
Voltage	300/500V
Test Voltage	2000 V
Short Circuit Temperature	160°C
Flame Propagation	Flame Retardant test as per IEC 60332-1
Operating Temperature Range	-15°C to +70°C

Volume Resistivity at 27°C Min.	x 10 Ω-cm
Tensile Strength Min. (N/mm²)	12.50 N/mm2
Elongation at Break Min. (%)	150
Minimum Bending Radius	≥6 X Cable Dia

SINGLE CORE PVC TYPE TI 1 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING

Applications :

H05V-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device.

Insulation Color Code :

Black
Blue
Brown
Gray
Orange
Pink
Red
Violet
White
Green
Green/Yellow
Yellow
Or as per customer requirement

Cable Construction :

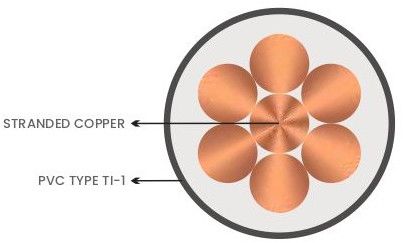

Conductor : Class 2 Stranded Plain Copper IEC 60228
Insulation : Special PVC type TI 1 to EN 50363-3

Features :

Design for Harmonized Acc. to European Standards
Very good Heat Resistance Property for Insulation
Special Grade Insulation PVC type TI 1 to EN 50363-3
Very good Insulation Resistance Property
Excellent Mechanical & Electricals property
Very good Current carring capacity
Very good Tharmal property for Insulation
Flame Retardant

Packing Details :

100 Meter
200 Meter
500 Meter
1000 Meter
2000 Meter
or As per Customer Requirement
