K Type Cables
Leading Manufacturers, Exporters, Wholesaler and Importer of H05V- K Type Cable, H05V2 K Type Cable, H05Z K Type Cable, H05Z1 K Type Cable, H07V K Type Cable, H07V2 K Type Cable, H07Z K Type Cable and H07Z1 K Type Cable from Mahesana.
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500 V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | 15°C to +70°C |
| Volume Resistivity at 27° C Min. | x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm² |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |
SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V-K Cable is used for the internal wiring in lighting can also be used in electronoc appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow

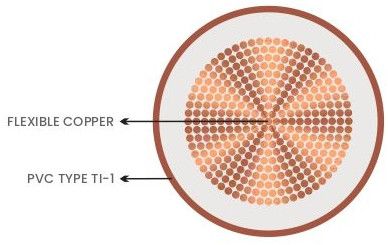

Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : Special PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500 V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature | -20°C to +90°C |
| Volume Resistivity | 27° C Min. : 1 x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm2 |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |

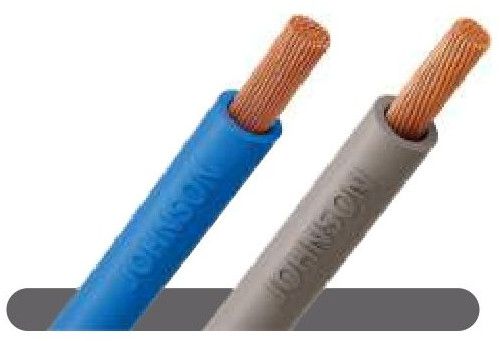

SINGLE CORE HEAT RESISTANCE HR PVC TI 3 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
H05V2-K & H07V2-K Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.

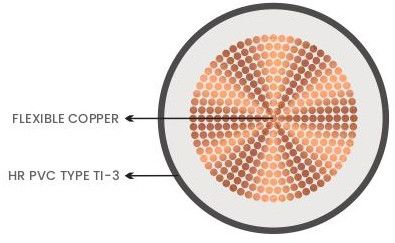

Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : Heat Resistance PVC type TI 3 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 3 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulatio
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 200°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1-2 |
| Operating Temperature Range | -20°C to +90°C |
| Volume Resistivity at 20°C Min. | 1 x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 10.00 N/mm² |
| Elongation at Break Min. (%) | 125 |
| Minimum Bending Radius | ≥6 X Cable Di |
NON CORROSIVE NON TOXIC POLYOLEFIN CROSS LINK LSZH HEAT RESISTANT INSULATED NON SHEATHED
Applications :
LSZH Wiring For Appliances with maximum operating temperature of 90°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement.

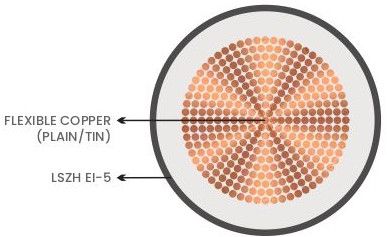

Cable Construction :
- Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
- Insulation : Polyolefin Cross Link LSZH type EI 5 to EN 50363-5
Features :
- Design for Harmonized Acc. to European Standards
- Polyolefin Cross Link LSZH type EI 5 to EN 50363-5
- Special LSZH Heat Resistance Thermosetting Insulation
- Very good Insulation Resistance property
- High current carrying capacity
- LSZH and ozone Resistance Insulation Material
- Very good fire retardant property
- Non Corrosive Non Toxic LSZH Heat Resistant Insulation
- Long Flex Life
- Excellent Mechanical & Electrical Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 200°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1-2 |
| Operating Temperature Range | 15°C to +70°C |
| Volume Resistivity at 20°C Min. | 1 x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 7.50 N/mm² |
| Elongation at Break Min. (%) | 125 |
| Minimum Bending Radius | ≥6 X Cable Dia |

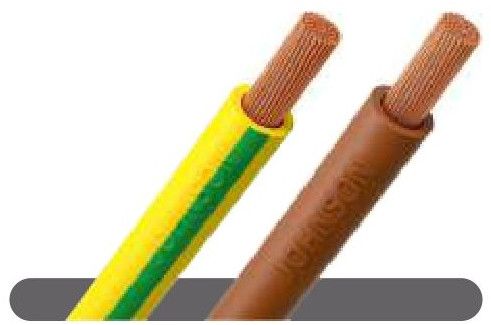

NON CORROSIVE NON TOXIC THERMOPLASTIC LSZH HEAT RESISTANT INSULATED NON SHEATHED
Applications :
- LSZH Wiring For Appliances with maximum operating temperature of 70°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement

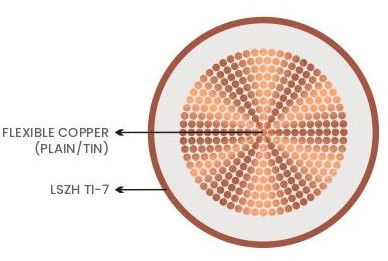

Cable Construction :
- Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
- Insulation : Thermoplastic LSZH type TI 7 to EN 50363-7
Features :
- Design for Harmonized Acc. to European Standards
- Thermoplastic LSZH type TI 7 to EN 50363-7
- Special LSZH Heat Resistance Thermoplastic Insulation
- Very good Insulation Resistance property
- High current carrying capacity
- LSZH and ozone Resistance Insulation Material
- Very good fire retardant property
- Non Corrosive Non Toxic LSZH Heat Resistant Insulation
- Long Flex Life
- Excellent Mechanical & Electrical Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750 V (H07V-K |
| Test Voltage | 2500 V (H07V-K) |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -15°C to +70°C |
| Volume Resistivity at 27° C Min. | x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |

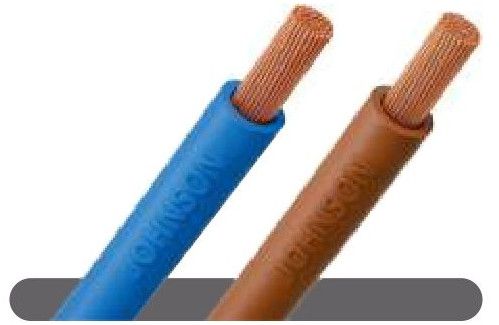

SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H07V-K Cable is used for the internal wiring in lighting can also be used in electronoc appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : Special PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750 V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature | -20°C to +90°C |
| Volume Resistivity at 27° C Min. | x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm² |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |
SINGLE CORE HEAT RESISTANCE HR PVC TI 3 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
H05V2-K & H07V2-K Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : Heat Resistance PVC type TI 3 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 3 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulatio
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 200°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1-2 |
| Operating Temperature Range | -20°C to +90°C |
| Volume Resistivity at 20°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 10.00 N/mm² |
| Elongation at Break Min. (%) | 125 |
| Minimum Bending Radius | ≥6 X Cable Dia |

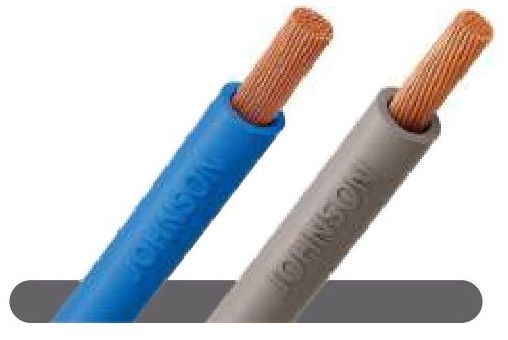

NON CORROSIVE NON TOXIC POLYOLEFIN CROSS LINK LSZH HEAT RESISTANT INSULATED NON SHEATHED
Applications :
LSZH Wiring For Appliances with maximum operating temperature of 90°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
- Insulation : Polyolefin Cross Link LSZH type EI 5 to EN 50363-5
Features :
- Design for Harmonized Acc. to European Standards
- Polyolefin Cross Link LSZH type EI 5 to EN 50363-5
- Special LSZH Heat Resistance Thermosetting Insulation
- Very good Insulation Resistance property
- High current carrying capacity
- LSZH and ozone Resistance Insulation Material
- Very good fire retardant property
- Non Corrosive Non Toxic LSZH Heat Resistant Insulation
- Long Flex Life
- Excellent Mechanical & Electrical Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 200°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1-2 |
| Operating Temperature Range | -15°C to +70°C |
| Volume Resistivity at 20°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 7.50 N/mm² |
| Elongation at Break Min. (%) | 120 |
| Minimum Bending Radius | ≥6 X Cable Dia |
NON CORROSIVE NON TOXIC THERMOPLASTIC LSZH HEAT RESISTANT INSULATED NON SHEATHED
Applications :
- LSZH Wiring For Appliances with maximum operating temperature of 70°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement
Cable Construction :
- Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
- Insulation : Thermoplastic LSZH type TI 7 to EN 50363-7
Features :
- Design for Harmonized Acc. to European Standards
- Thermoplastic LSZH type TI 7 to EN 50363-7
- Special LSZH Heat Resistance Thermoplastic Insulation
- Very good Insulation Resistance property
- High current carrying capacity
- LSZH and ozone Resistance Insulation Material
- Very good fire retardant property
- Non Corrosive Non Toxic LSZH Heat Resistant Insulation
- Long Flex Life
- Excellent Mechanical & Electrical Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
