5000 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Click to view more | |
Product Details
Test Voltage
2000 V
Short Circuit Temperature
160°C
Flame Propagation
Flame Retardant test as per IEC 60332-1
Operating Temperature Range
-20°C to +90°C
Volume Resistivity at 27°C Min.
1 x 10 Ω-cm
Tensile Strength Min. (N/mm²)
12.50 N/mm2
Elongation at Break Min. (%)
150
Minimum Bending Radius
≥6 X Cable Dia

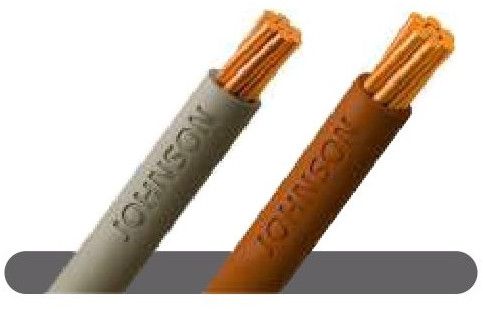

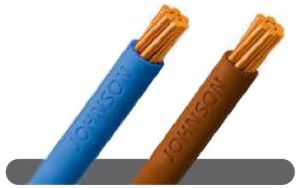

SINGLE CORE HEAT RESISTANCE PVC TYPE TI 3 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V2-R & H07V2-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement

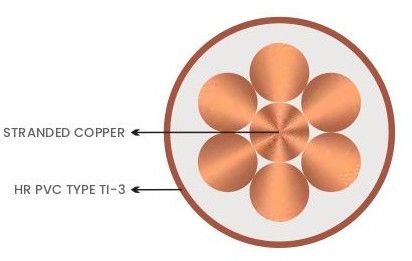

Cable Construction :
- Conductor : Class 2 Stranded Plain Copper IEC 60228
- Insulation : HR PVC type TI 3 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 3 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement

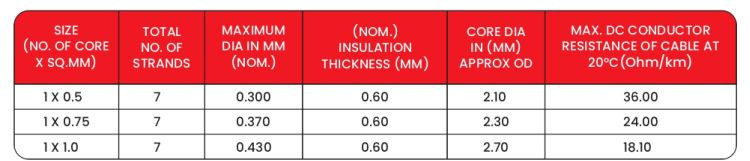

Specifications
