5000 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Click to view more | |
Product Details
Test Voltage
2500 V
Short Circuit Temperature
160°C
Flame Propagation
Flame Reatardant test as per IEC 60332-1
Operating Temperature Range
15°C to +70°C
Volume Resistivity at 27°C Min.
1 x 10 Ω-cm
Tensile Strangth Min. (N/mm²)
12.50 N/mm²
Elangation at Break Min. (%)
150
Minimum Bending Radius
≥8 X Cable Dia
SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H07V-U U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 1 Solid bare Copper IEC 60228
- Insulation : PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Insulation Resistance Property
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardant
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement

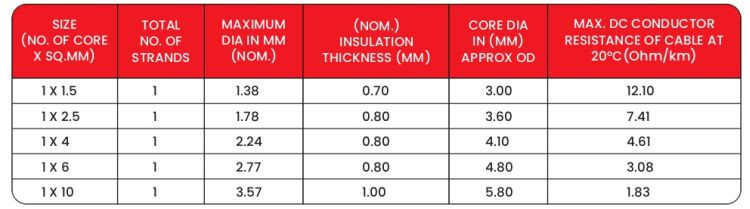

Specifications
