H05V2-U Type Cables
Leading Manufacturers, Exporters, Wholesaler and Importer of H05V U Type Cable, H05V2 U Type Cable, H07V U Type Cable and H07V2 U Type Cable from Mahesana.
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | 15°C to +70°C |
| Volume Resistivity at 27°C Min. | 1 x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm2 |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥8 X Cable Dia |
SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V-U U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.

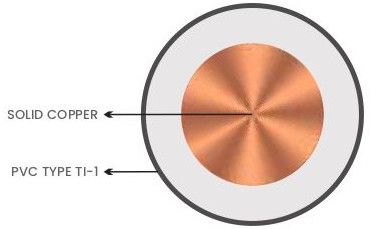

Cable Construction :
- Conductor : Class 1 Solid bare Copper IEC 60228
- Insulation : PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Insulation Resistance Property
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardant
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -15°C to +90°C |
| Volume Resistivity at 27°C Min. | x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm² |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥8 X Cable Dia |

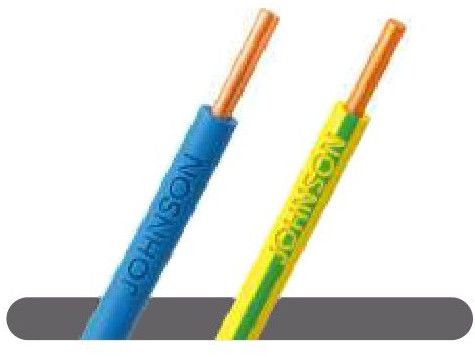

SINGLE CORE HEAT RESISTANCE HR PVC TI 3 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V2-U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.

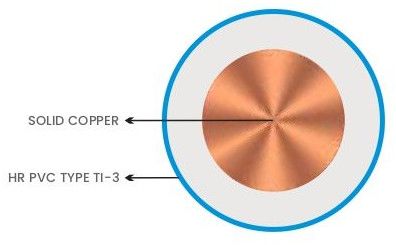

Cable Construction :
- Conductor : Class 1 Solid bare Copper IEC 60228
- Insulation : PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Very good Insulation Resistance Property
- Special Grade Insulation HR PVC type TI 3 to EN 50363-3
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardan
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | 15°C to +70°C |
| Volume Resistivity at 27°C Min. | 1 x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm² |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥8 X Cable Dia |

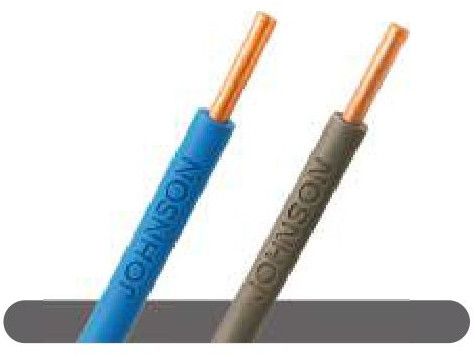

SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H07V-U U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 1 Solid bare Copper IEC 60228
- Insulation : PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Insulation Resistance Property
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardant
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -15°C to +90°C |
| Volume Resistivity at 27°C Min. | 1 x 10 Ω-cm |
| Tensile Strangth Min. (N/mm²) | 12.50 N/mm² |
| Elangation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥8 X Cable Dia |
SINGLE CORE HEAT RESISTANCE HR PVC TI 3 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H07V2-U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 1 Solid bare Copper IEC 60228
- Insulation : PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Very good Insulation Resistance Property
- Special Grade Insulation HR PVC type TI 3 to EN 50363-3
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardan
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
