F Type Cables

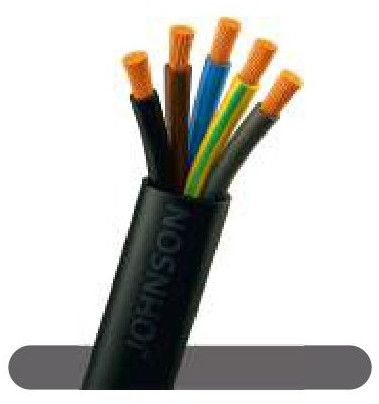

Leading Manufacturers, Exporters, Wholesaler and Importer of Five Core F Type Cable, Four Core F Type Cable, H05V2V2 F Type Cable, H05VV F Type Cable, Single Core H07RN- F Type Cable, Triple Core F Type Cable and Two Core H07RN- F Type Cable from Mahesana.
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Test Voltage | 2500 V |
| Voltage | 450/750V |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -25°C to +90°C |
| Volume Resistivity at 90°C (Ohm-cm) Min. | 1 X 10 12 |
| Tensile Strangth Min. (N/mm2) | 5.00 |
| Elangation at Break Min. (%) | 200 |
| Minimum Bending Radius | 8 X Cable Dia |
Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.

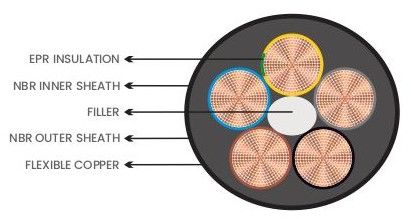

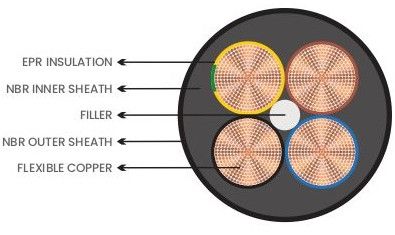

Cable Construction
- Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
- Insulation EPR (Ethylene Propylene Rubber) EI4
- Outer Sheath EM2 Type NBR Rubber
Insulation Color Code
- 1 core : Black or other Colour
- 2 core : Blue, Brown
- 3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
- 4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
- 5 core : Green/Yellow, Blue, Brown, Black, Gray
- 6 core & above : Green/Yellow, Black
Outer Sheath
- Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)
Note :
- There is the option for core colour & sheath colour as per customer requirement
Featues :
- Design For Heavy Duty Use
- Very Good Long Term Performance
- Excellent Resistance To Oil,chemical & Solvent
- Excellent Weather Resistance
- Excellent Mechanical & Electricals Property
- Very Good Current Carring Capacity
- Very Good Tharmal Property
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Polycab |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -25°C to +90°C |
| Volume Resistivity at 90°C (Ohm-cm) Min. | 1 X 10 12 |
| Tensile Strangth Min. (N/mm2) | 5.00 |
| Elangation at Break Min. (%) | 200 |
| Minimum Bending Radius | 8 X Cable Dia |
Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.
Cable Construction
- Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
- Insulation EPR (Ethylene Propylene Rubber) EI4
- Outer Sheath EM2 Type NBR Rubber
Insulation Color Code
- 1 core : Black or other Colour
- 2 core : Blue, Brown
- 3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
- 4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
- 5 core : Green/Yellow, Blue, Brown, Black, Gray
- 6 core & above : Green/Yellow, Black
Outer Sheath
- Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)
Note :
- There is the option for core colour & sheath colour as per customer requirement
Featues :
- Design For Heavy Duty Use
- Very Good Long Term Performance
- Excellent Resistance To Oil,chemical & Solvent
- Excellent Weather Resistance
- Excellent Mechanical & Electricals Property
- Very Good Current Carring Capacity
- Very Good Tharmal Property
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Flame Propagation: Flame Retardant Test | As per IEC 60332-1 |
| Operating Temperature Range | -15°C to +90°C |
| Volume Resistivity at 27°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 12.50 N/mm2 |
| Elongation at Break Min. (%) : | 150 |
| Minimum Bending Radius | ≥8 X Cable Dia |

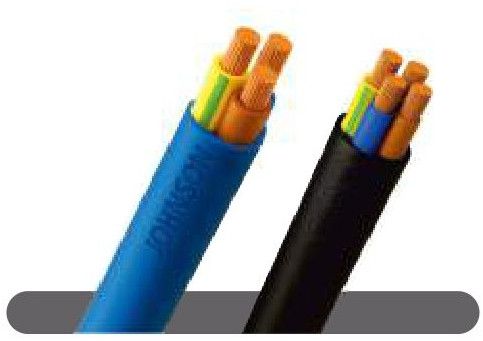

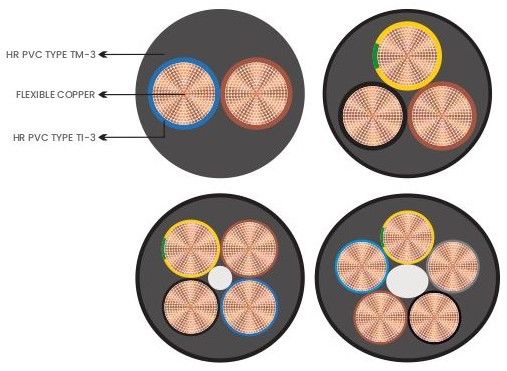

MULTI CORE HEAT RESISTANCE PVC INSULATED & PVC SHEATHED FLEXIBLE CORDS
Applications
- PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances, such as office equipment. applications.
Insulation Color Code :
2 Core : Blue Brown
3 Core : Yellow/Green Strip Blue Brown
4 Core : Yellow/Green Strip Brown Black Gray
5 Core : Yellow/Green Strip Blue Brown Black Gray Or as per customer requirement.
Sheath Color Code :
- 2 Core : White / Blue / Gray
- 3 Core : White / Blue / Gray
- 4 Core : White / Blue / Gray
- 5 Core : White / Blue / Gray
- Or as per customer requirement.
Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 6022
- Insulation : HR PVC type TI 3 to EN 50363-3 (H05V2V2-F)
- Sheath : HR PVC type TM 3 to EN 50363-4-1 (H05V2V2-F)
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation HR PVC type TI 3 to EN 50363-3
- Special Grade Sheath HR PVC type TM 3 to EN 50363-4-1
- Very good Insulation Resistance Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement.
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Feature | Harmonized Design,Heat Resistance,Insulation Resistance,Moisture Resistance,Abrasion Resistance,Oil Resistance,Mechanical & Electrical Properties,Current Carrying Capacity,Thermal Properties |
| Application | Domestic Appliances,Kitchens,Offices,Light Portable Appliances,Office Equipment |
| Packaging Type | 100 Meter,200 Meter,500 Meter,1000 Meter,2000 Meter,Customer Requirement |
| Color | Black, Green, White, Yellow, Blue,Brown,Strip,Gray,Gray |
| Material | PVC Insulated,PVC Sheathed |
| Voltage | 300/500V |
| Country of Origin | India |
| Brand Name | Johnson |
| Test Voltage | 2000 V |
| Flame Propagation: Flame Retardant Test | As per IEC 60332-1 |
| Operating Temperature Range | 15°C to +70°C |
| Volume Resistivity at 27°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 12.50 N/mm2 |
| Elongation at Break Min. (%) : | 150 |
| Minimum Bending Radius | ≥8 X Cable Dia |
| Insulation Color Code | 2 Core: Blue Brown, 3 Core: Yellow/Green Strip Blue Brown, 4 Core: Yellow/Green Strip Brown Black Gray, 5 Core: Yellow/Green Strip Blue Brown Black Gray, Customer Requirement |
| Sheath Color Code | 2 Core: White/Blue/Gray, 3 Core: White/Blue/Gray, 4 Core: White/Blue/Gray, 5 Core: White/Blue/Gray, Customer Requirement |
| Cable Construction | Conductor: Class 5 Flexible Bare Copper IEC 60228, Insulation: PVC Type TI 2 To EN 50363-3 (H05VV-F), Sheath: PVC Type TM 2 To EN 50363-4-1 (H05VV-F) |
| Packing Details | 100 Meter, 200 Meter, 500 Meter, 1000 Meter, 2000 Meter, Customer Requirement |

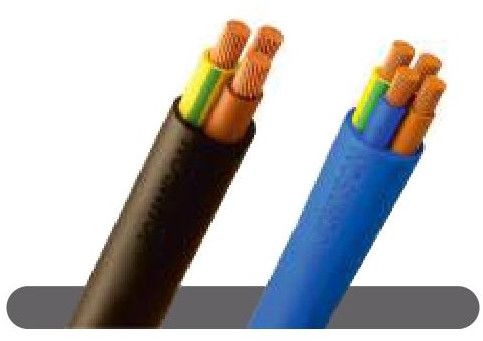

MULTI CORE PVC INSULATED & PVC SHEATHED FLEXIBLE CORDS
Applications :
- PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances, such as office equipment. applications.
Insulation Color Code :
- 2 Core : Blue Brown
- 3 Core : Yellow/Green Strip Blue Brown
- 4 Core : Yellow/Green Strip Brown Black Gray
- 5 Core : Yellow/Green Strip Blue Brown Black Gray
- Or as per customer requirement.
Sheath Color Code :
- 2 Core : White / Blue / Gray
- 3 Core : White / Blue / Gray
- 4 Core : White / Blue / Gray
- 5 Core : White / Blue / Gray
- Or as per customer requirement.

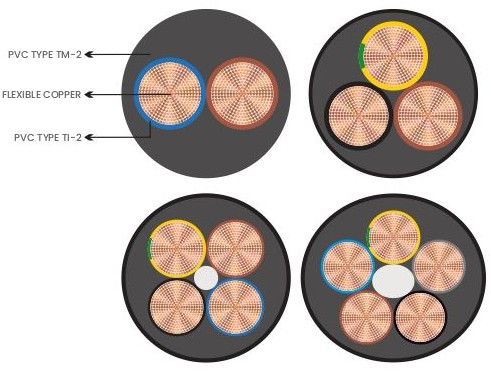

Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : PVC type TI 2 to EN 50363-3 (H05VV-F)
- Sheath : PVC type TM 2 to EN 50363-4-1 (H05VV-F
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 2 to EN 50363-3
- Special Grade Sheath PVC type TM 3 to EN 50363-4-1
- Very good Insulation Resistance Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement.
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnsoncab |
| Voltage | 450/750V |
| Country of Origin | India |
| Test Voltage | 2500 V |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -25°C to +90°C |
| Volume Resistivity at 90°C (Ohm-cm) Min. | 1 X 10 12 |
| Tensile Strangth Min. (N/mm2) | 5.00 |
| Elangation at Break Min. (%) | 200 |
| Minimum Bending Radius | 8 X Cable Dia |
Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.

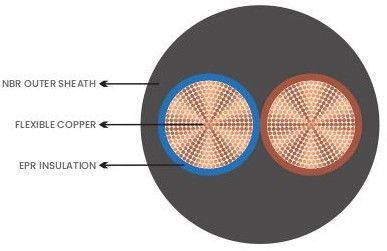

Cable Construction
- Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
- Insulation EPR (Ethylene Propylene Rubber) EI4
- Outer Sheath EM2 Type NBR Rubber
Insulation Color Code
- 1 core : Black or other Colour
- 2 core : Blue, Brown
- 3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
- 4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
- 5 core : Green/Yellow, Blue, Brown, Black, Gray
- 6 core & above : Green/Yellow, Black
Outer Sheath
- Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)
Note :
- There is the option for core colour & sheath colour as per customer requirement
Featues :
- Design For Heavy Duty Use
- Very Good Long Term Performance
- Excellent Resistance To Oil,chemical & Solvent
- Excellent Weather Resistance
- Excellent Mechanical & Electricals Property
- Very Good Current Carring Capacity
- Very Good Tharmal Property
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -25°C to +90°C |
| Volume Resistivity at 90°C (Ohm-cm) Min. | 1 X 10 12 |
| Tensile Strangth Min. (N/mm2) | 5.00 |
| Elangation at Break Min. (%) | 200 |
| Minimum Bending Radius | 8 X Cable Dia |
Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.

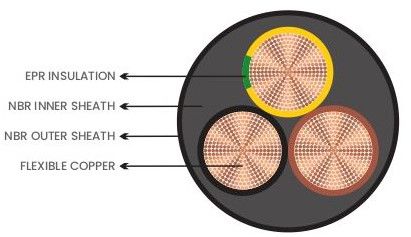

Cable Construction
- Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
- Insulation EPR (Ethylene Propylene Rubber) EI4
- Outer Sheath EM2 Type NBR Rubber
Insulation Color Code
- 1 core : Black or other Colour
- 2 core : Blue, Brown
- 3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
- 4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
- 5 core : Green/Yellow, Blue, Brown, Black, Gray
- 6 core & above : Green/Yellow, Black
Outer Sheath
- Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)
Note :
- There is the option for core colour & sheath colour as per customer requirement
Featues :
- Design For Heavy Duty Use
- Very Good Long Term Performance
- Excellent Resistance To Oil,chemical & Solvent
- Excellent Weather Resistance
- Excellent Mechanical & Electricals Property
- Very Good Current Carring Capacity
- Very Good Tharmal Property
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Voltage | 450/750V |
| Country of Origin | India |
| Brand | Johnson |
| Test Voltage | 2500 V |
| Flame Propagation | Flame Reatardant test as per IEC 60332-1 |
| Operating Temperature Range | -25°C to +90°C |
| Volume Resistivity at 90°C (Ohm-cm) Min. | 1 X 10 12 |
| Tensile Strangth Min. (N/mm2) | 5.00 |
| Elangation at Break Min. (%) | 200 |
| Minimum Bending Radius | 8 X Cable Dia |
Applications :
These cables are designed to provide high flexibility and have the capacity to withstand oil, weather, grease, mechanical and thermal stresses. Applications include handling equipment, worksites, port areas and dams. Also for use in drainage and water treatment, cold environments, Oil Resistance application and severe industrial environments.

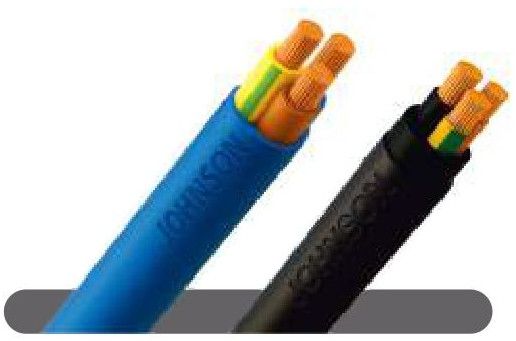

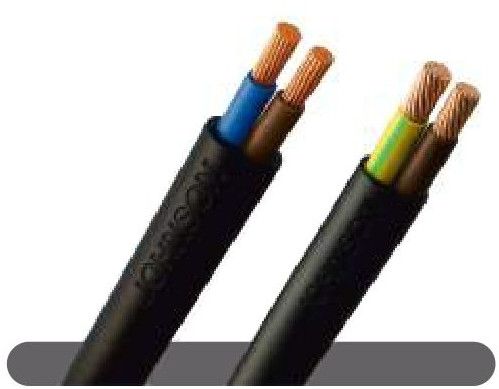

Cable Construction
- Conductor Class 5 Flexible Stranded Plain Copper (IEC 60228)
- Insulation EPR (Ethylene Propylene Rubber) EI4
- Outer Sheath EM2 Type NBR Rubber
Insulation Color Code
- 1 core : Black or other Colour
- 2 core : Blue, Brown
- 3 core : Green/Yellow, Blue, Brown or Blue, Brown, Black
- 4 core : Green/Yellow, Brown, Black, Gray or Green/Yellow, Blue, Brown, Black
- 5 core : Green/Yellow, Blue, Brown, Black, Gray
- 6 core & above : Green/Yellow, Black
Outer Sheath
- Weather/Oil Resistance and Fire Retardant NBR Rubber EM2 (Black Colour OR Blue Colour And other Colour As per Customer Reqirement)
Note :
- There is the option for core colour & sheath colour as per customer requirement
Featues :
- Design For Heavy Duty Use
- Very Good Long Term Performance
- Excellent Resistance To Oil,chemical & Solvent
- Excellent Weather Resistance
- Excellent Mechanical & Electricals Property
- Very Good Current Carring Capacity
- Very Good Tharmal Property
Packing Details
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requiremen
