5000 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Feature | Harmonized Design,Heat Resistance,Insulation Resistance,Moisture Resistance,Abrasion Resistance,Oil Resistance,Mechanical & Electrical Properties,Current Carrying Capacity,Thermal Properties |
| Application | Domestic Appliances,Kitchens,Offices,Light Portable Appliances,Office Equipment |
| Packaging Type | 100 Meter,200 Meter,500 Meter,1000 Meter,2000 Meter,Customer Requirement |
| Click to view more | |
Product Details
Color
Black, Green, White, Yellow, Blue,Brown,Strip,Gray,Gray
Material
PVC Insulated,PVC Sheathed
Voltage
300/500V
Country of Origin
India
Brand Name
Johnson
Test Voltage
2000 V
Flame Propagation: Flame Retardant Test
As per IEC 60332-1
Operating Temperature Range
15°C to +70°C
Volume Resistivity at 27°C Min.
x 10 Ω-cm
Tensile Strength Min. (N/mm²)
12.50 N/mm2
Elongation at Break Min. (%) :
150
Minimum Bending Radius
≥8 X Cable Dia
Insulation Color Code
2 Core: Blue Brown, 3 Core: Yellow/Green Strip Blue Brown, 4 Core: Yellow/Green Strip Brown Black Gray, 5 Core: Yellow/Green Strip Blue Brown Black Gray, Customer Requirement
Sheath Color Code
2 Core: White/Blue/Gray, 3 Core: White/Blue/Gray, 4 Core: White/Blue/Gray, 5 Core: White/Blue/Gray, Customer Requirement
Cable Construction
Conductor: Class 5 Flexible Bare Copper IEC 60228, Insulation: PVC Type TI 2 To EN 50363-3 (H05VV-F), Sheath: PVC Type TM 2 To EN 50363-4-1 (H05VV-F)
Packing Details
100 Meter, 200 Meter, 500 Meter, 1000 Meter, 2000 Meter, Customer Requirement
MULTI CORE PVC INSULATED & PVC SHEATHED FLEXIBLE CORDS
Applications :
- PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances, such as office equipment. applications.
Insulation Color Code :
- 2 Core : Blue Brown
- 3 Core : Yellow/Green Strip Blue Brown
- 4 Core : Yellow/Green Strip Brown Black Gray
- 5 Core : Yellow/Green Strip Blue Brown Black Gray
- Or as per customer requirement.
Sheath Color Code :
- 2 Core : White / Blue / Gray
- 3 Core : White / Blue / Gray
- 4 Core : White / Blue / Gray
- 5 Core : White / Blue / Gray
- Or as per customer requirement.

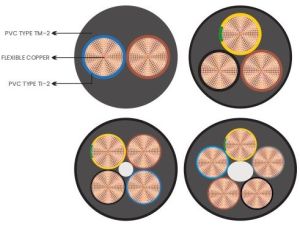

Cable Construction :
- Conductor : Class 5 Flexible bare Copper IEC 60228
- Insulation : PVC type TI 2 to EN 50363-3 (H05VV-F)
- Sheath : PVC type TM 2 to EN 50363-4-1 (H05VV-F
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 2 to EN 50363-3
- Special Grade Sheath PVC type TM 3 to EN 50363-4-1
- Very good Insulation Resistance Property
- Excellent Resistance to Moisture, Abrasion, Grace, Oil
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement.

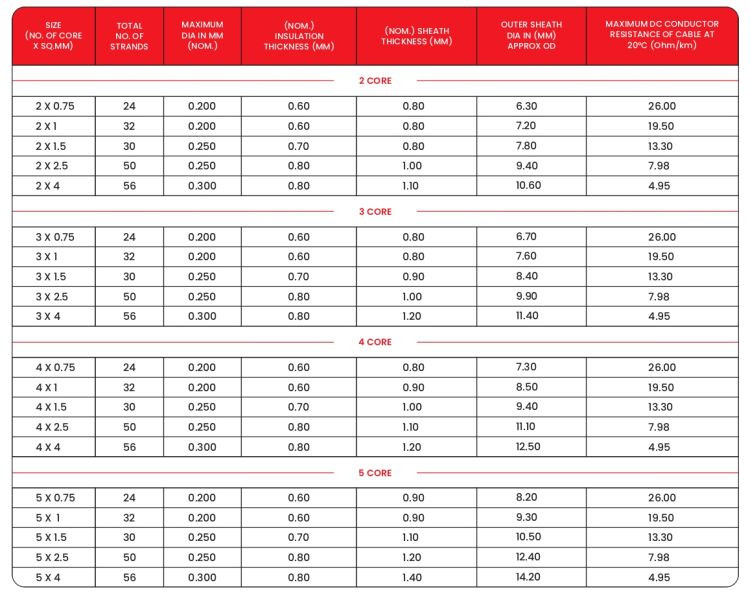

Specifications
