R- H07V2 Type Cables
Leading Manufacturers, Exporters, Wholesaler and Importer of H05V R Type Cable, H05V2 R Type Cable, H07V R Type Cable and H07V2 R Type Cable from Mahesana.
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Retardant test as per IEC 60332-1 |
| Operating Temperature Range | -15°C to +70°C |
| Volume Resistivity at 27°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 12.50 N/mm2 |
| Elongation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |
SINGLE CORE PVC TYPE TI 1 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement
Cable Construction :
- Conductor : Class 2 Stranded Plain Copper IEC 60228
- Insulation : Special PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 300/500V |
| Test Voltage | 2000 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Retardant test as per IEC 60332-1 |
| Operating Temperature Range | -20°C to +90°C |
| Volume Resistivity at 27°C Min. | 1 x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 12.50 N/mm2 |
| Elongation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |
SINGLE CORE HEAT RESISTANCE PVC TYPE TI 3 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V2-R & H07V2-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement
Cable Construction :
- Conductor : Class 2 Stranded Plain Copper IEC 60228
- Insulation : HR PVC type TI 3 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 3 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement

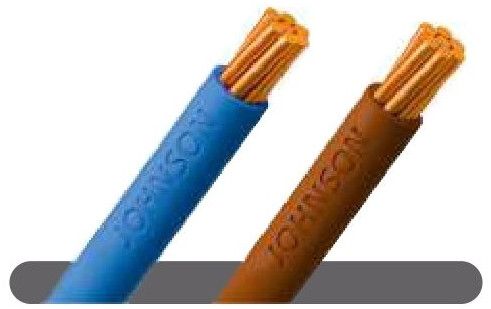

| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation: | Flame Retardant test as per IEC 60332-1 |
| Operating Temperature Range | -15°C to +70°C |
| Volume Resistivity at 27°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 12.50 N/mm² |
| Elongation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |
SINGLE CORE PVC TYPE TI 1 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device.
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement

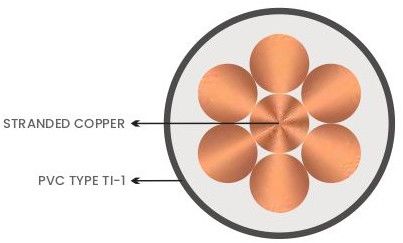

Cable Construction :
- Conductor : Class 2 Stranded Plain Copper IEC 60228
- Insulation : Special PVC type TI 1 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 1 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
- Flame Retardant
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement

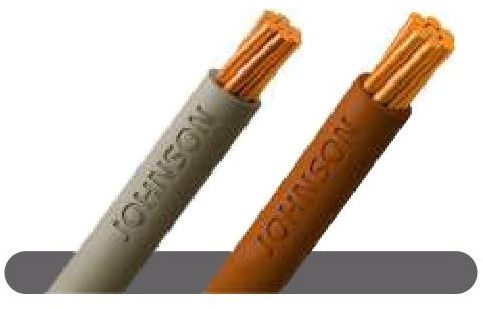

| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Brand Name | Johnson |
| Country of Origin | India |
| Voltage | 450/750V |
| Test Voltage | 2500 V |
| Short Circuit Temperature | 160°C |
| Flame Propagation | Flame Retardant test as per IEC 60332-1 |
| Operating Temperature Range | -20°C to +90°C |
| Volume Resistivity at 27°C Min. | x 10 Ω-cm |
| Tensile Strength Min. (N/mm²) | 12.50 N/mm² |
| Elongation at Break Min. (%) | 150 |
| Minimum Bending Radius | ≥6 X Cable Dia |
SINGLE CORE HEAT RESISTANCE PVC TYPE TI 3 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
- H05V2-R & H07V2-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device
Insulation Color Code :
- Black
- Blue
- Brown
- Gray
- Orange
- Pink
- Red
- Violet
- White
- Green
- Green/Yellow
- Yellow
- Or as per customer requirement

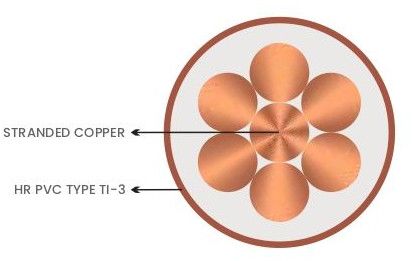

Cable Construction :
- Conductor : Class 2 Stranded Plain Copper IEC 60228
- Insulation : HR PVC type TI 3 to EN 50363-3
Features :
- Design for Harmonized Acc. to European Standards
- Very good Heat Resistance Property for Insulation
- Special Grade Insulation PVC type TI 3 to EN 50363-3
- Very good Insulation Resistance Property
- Excellent Mechanical & Electricals property
- Very good Current carring capacity
- Very good Tharmal property for Insulation
Packing Details :
- 100 Meter
- 200 Meter
- 500 Meter
- 1000 Meter
- 2000 Meter
- or As per Customer Requirement
